Drying Technology
We solution for:
Continuous evaporation concentration in industries pharmaceuticals, chemicals, bioengineering, environmental engineering.
Special to four-effect concentration technology with low temperature
SHINCCI for your satisfication:
Low temperature evaporation in range of 20~60 degrees
Saves 75% energy comparing to one-effect evaporation.
Can effectively control discharge concentration
Live concentration monitoring control can realize automatic discharge.
Have the vacuum concentration technology:
Concentration of herb extraction
Concentration of juice extraction
Essential oil distillation for medical treatment

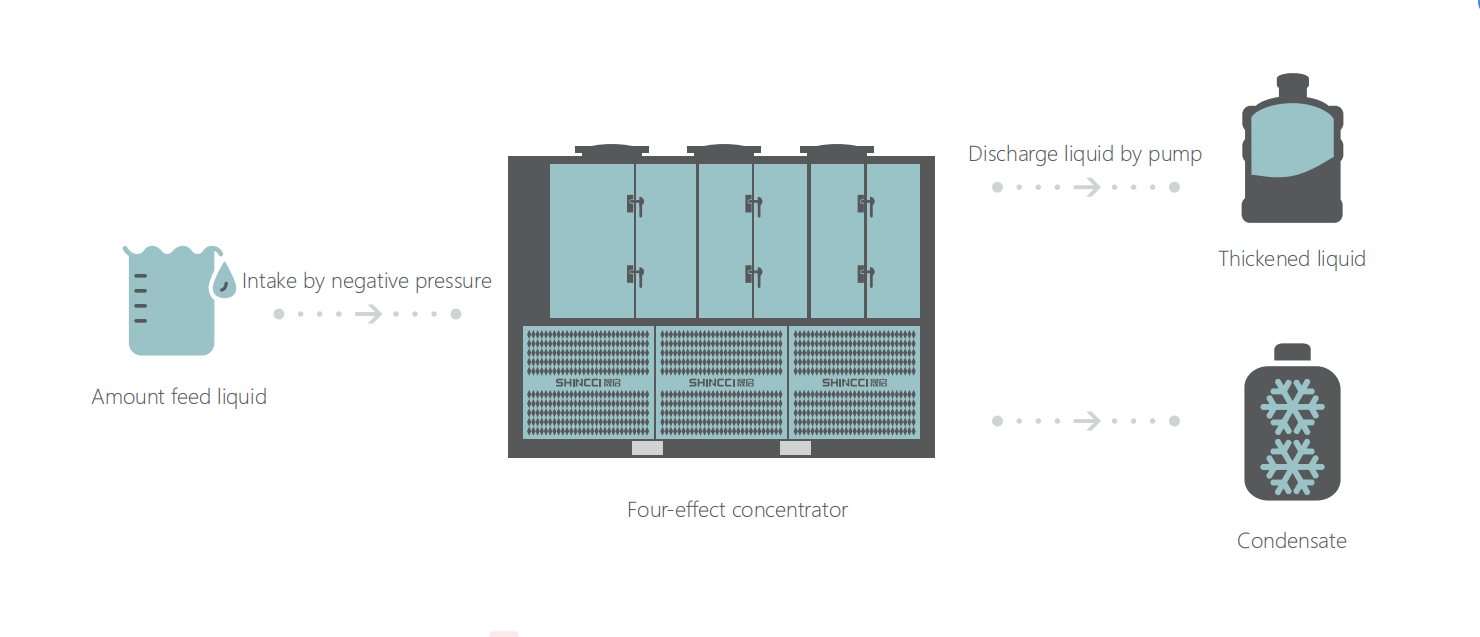

A large amount of feed liquid is intake by the concentrator machine under negative pressure, and a small amount of thickened liquid is discharged by pump after treatment; condensed water is forced out by the water pump.
Energy Consumption Analysis&System Comparison

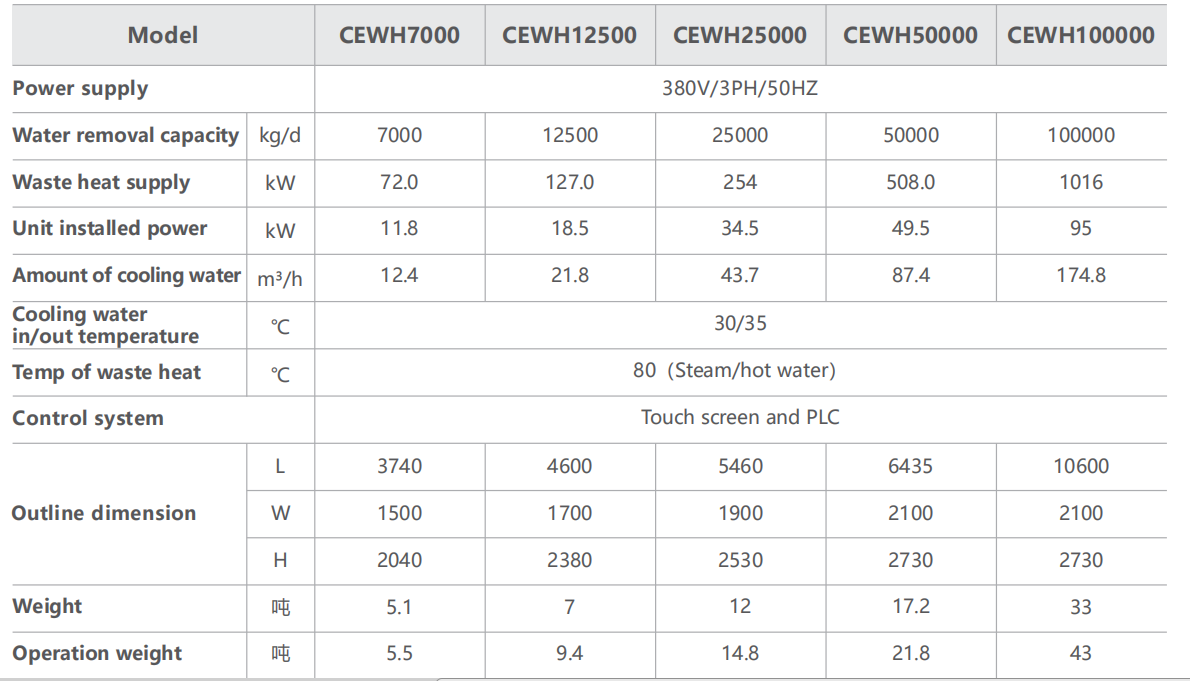

The production range of four- effect concentrator is between 7 and 200T/D.
Machine Type | Three-Effect | MVR Evaporator | Four-Effect | Four-Effect |
Energy consumptionper | High | Medium | Low | Low |
0. 4 tons steam+15 kWh electric energy+1 ton cooling water | 90 kWh electric energy | 70 kWh electric energy | 40 kWh electric energy | |
Operating expensesper | $19/T | $10/T | $8/T | $4.5/T |
Maintenance | 1. easy to scale and scorch | 1. easy to scale and scorch | 1.Clean Heat exchanger surface | 1.Clean Heat exchanger surface |
Treatment Effect | Material ingredients destroyedin high-temp. | Material ingredients destroyedin high-temp. | Material ingredients preserved | Material ingredients preserved |
As Multi effect evaporator /Juice concentrator/Herb extraction machine | ||||

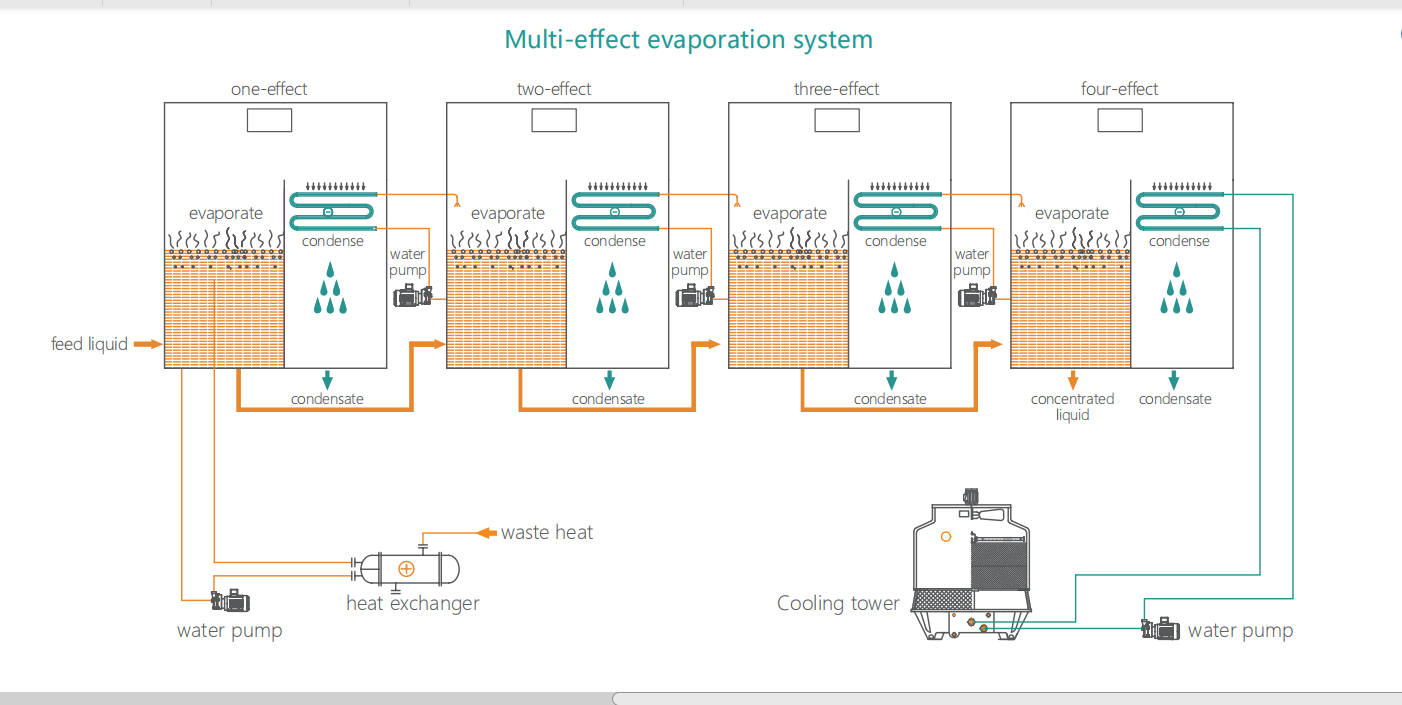

① The one-effect feed liquid is heated by the heat source in vacuum and then boils and evaporates, and the low-temperature steam is cooled into condensate by the two-effect condenser and discharged outside the machine;
②After being concentrated by the one-effect evaporation, the feed liquid enters the two-effect evaporation chamber. The two-effect feed liquid is heated by the two-effect heater and then boils and evaporates. The low temperature steam is cooled into condensate by the three- effect condenser and discharged outside the machine;
③The feed liquid enters the three-effect evaporation chamber after being concentrated by the two-effect evaporation. The three-effect feed liquid is heated by the three-effect heater and then boils and evaporates. The low-temperature steam is cooled into condensate by the four-effect condenser and discharged outside the machine;
④ After concentration by three-effect evaporation, the feed liquid enters the four-effect evaporation chamber. The four-effect feed liquid is heated by the four-effect heater and then boils and evaporates. The low temperature steam is cooled into condensate water by the cooler and discharged outside the machine;
⑤ The cooling heat is discharged from the engine through the cooling system;
⑥ The feed liquid passes through one- effect, two- effect and three-effect. After multi-effect concentration, it is discharged outside the machine.
